Lighting an Overhead Pool Table Camera: Why Perimeter Lighting Wins

If you've ever tried mounting a camera above a pool table, you've probably run into the same wall everyone else does: the light fixture is in the way. Most tables put a single long lamp right over the center — great for players, terrible for a camera trying to see the whole table clearly.

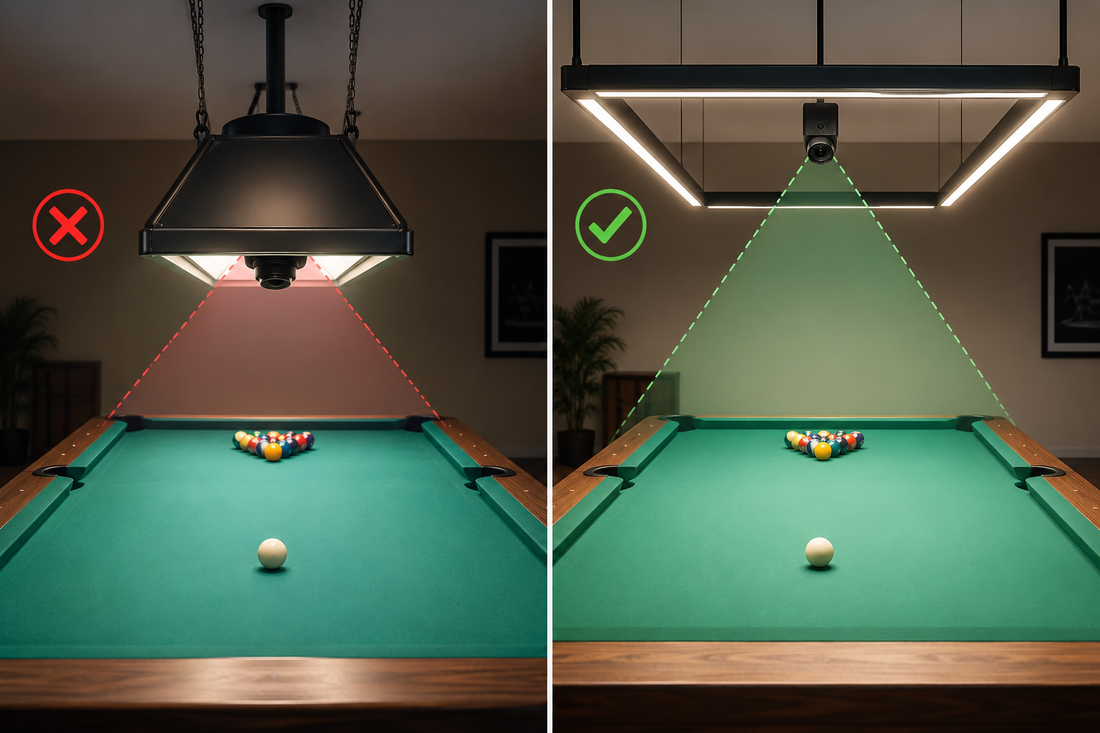

The Problem with Center-Mounted Lights

A center fixture does three annoying things at once. It sits exactly where you want to put a camera, so you end up mounting the lens awkwardly to one side or fighting the fixture's housing for space. It also floods the middle of the table with light while leaving the corners and rails dimmer, which confuses auto-exposure and washes out contrast. And because everything — balls, hands, cue sticks — is lit from one direction, you get hard shadows that trip up any ball-tracking software trying to identify shapes and colors.



The Fix: Move the Light to the Edges

Perimeter lighting flips the layout. Instead of one lamp overhead, LED strips run along the four sides of the table, aiming light inward and down onto the surface. The center stays open — which is exactly where your camera wants to go.

A few things fall into place once you do this:

The camera gets a clear shot. With no fixture in the middle, you can mount the lens as close to straight-down as you like, without extensions or custom brackets.

Light evens out. The WPA's own equipment standard calls for even lighting across the bed and rails — no hot spot in the middle. Perimeter setups do this naturally, since light comes from all sides rather than one point, similar to how ring lights work in machine vision. Manufacturers of these fixtures generally report even coverage well above the WPA minimum.

Shadows soften. Light hitting the table from multiple angles fills in the shadows that any single source would cast. That matters more than it sounds — cleaner shadows mean fewer false reads from tracking software trying to spot ball edges and colors.

Video looks better. Flicker-free LEDs at a steady color temperature mean footage without the color shifts or blown-out patches you get under a single bright lamp — useful whether you're streaming a match or feeding video into an analysis system.

Less lens flare. The lens is no longer sitting right next to a bright source, so you lose a common source of washed-out, low-contrast footage.

You can fine-tune it. Perimeter strips are usually addressable in zones, so if one corner ends up a touch darker, you can bump that section up rather than relighting the whole table.



A Couple of Practical Tips

Angle the strips slightly downward and inward so light lands on the felt, not the camera. And skip wide-angle lenses if you can — something closer to a 35–50mm equivalent avoids the edge distortion that undercuts the even lighting you just set up.

Bottom Line

Lighting, not the camera, is usually what makes or breaks an overhead setup. Center fixtures get in the way and create shadows and uneven exposure; moving the light to the perimeter clears the center for the camera and gives you a flatter, more consistent picture — better for viewers and far easier on any tracking software trying to make sense of the game.
